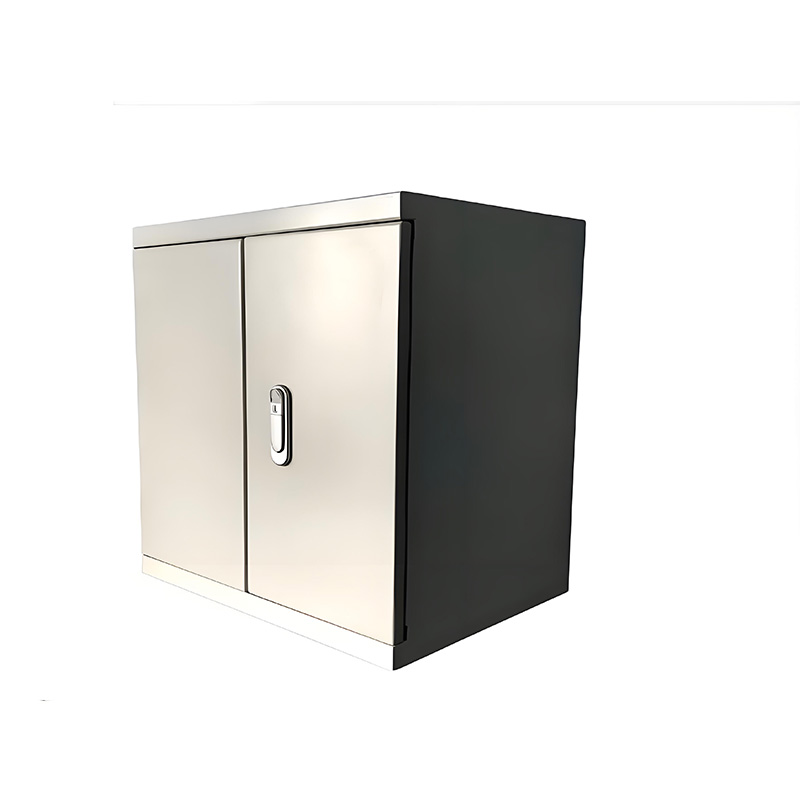

Introduction: Why Sheet Metal Enclosures Matter
Sheet metal enclosures protect sensitive electronics in industries from telecommunications to medical devices. Surprisingly, proper design can reduce manufacturing costs by up to 30% while improving functionality. Our team discovered this firsthand during a 2025 project where redesigning the sheet metal enclosure eliminated vibration issues in industrial controllers.
Secret #1: Smart Design for Manufacturing
The Challenge: Balancing Form and Function
Designers often prioritize aesthetics over manufacturability. This leads to increased production costs and potential quality issues. The solution involves implementing Design for Manufacturing (DFM) principles early in the design process.
Practical Solutions
First, avoid sharp corners in your metal enclosure designs. According to industry standards, interior angles should have minimum radii of 0.5 times material thickness:cite[1]. Second, maintain proper spacing between holes and edges—at least 1.5 times material thickness for parallel edges:cite[1].
Warning: Common Design Mistake
Avoid narrow slots and extended cutouts. They require special tools and increase production time. For example, slot width should be at least 1.5 times material thickness to prevent tool damage:cite[1].
Secret #2: Material Selection Mastery
Choosing the right material impacts durability, corrosion resistance, and cost. Interestingly, aluminum enclosures weigh 60% less than steel alternatives while providing adequate protection for many applications.
| Material | Best For | Limitations | Cost Impact |
|---|---|---|---|
| Cold-rolled steel | Industrial environments | Prone to corrosion | Lowest |
| Stainless steel | Medical/food equipment | Higher cost | 40-60% higher |
| Aluminum | Weight-sensitive applications | Less durable | 20-30% higher |
Secret #3: Precision Bending Techniques
Proper bending ensures consistent dimensions and avoids material stress. The minimum bend radius varies by material—for mild steel, it’s approximately 0.8 times material thickness, while aluminum requires 0.6 times thickness:cite[1].
5-Step Bending Quality Checklist
- Verify bend radius matches material specifications
- Check bend allowance calculations
- Confirm tooling alignment
- Validate bend angle tolerance (±1°)
- Inspect for surface deformations
Secret #4: Advanced Joining Methods
While welding provides strong bonds, modern sheet metal enclosure fabrication increasingly uses mechanical fasteners and specialized adhesives. For instance, EMI shielding requirements often dictate joining method selection.
Secret #5: Surface Finish Excellence
Surface treatments enhance appearance and protection. Powder coating provides durable finishes with uniform thickness, while anodizing offers superior corrosion resistance for aluminum enclosures.
Secret #6: Quality Control Protocols
Implement statistical process control at key production stages. Surprisingly, comprehensive QC reduces overall costs by minimizing rework. Measure critical dimensions against ISO 2768 medium standards.
Secret #7: Efficient Thermal Management
Proper ventilation prevents component overheating. Interestingly, strategic vent patterning can maintain EMI shielding while improving airflow. For example, frequency-selective surfaces can provide 30dB shielding while allowing heat dissipation:cite[7].
Check out our high-quality sheet metal enclosure solutions designed for optimal thermal performance.
Implementation Guide: 5 Steps to Better Enclosures
- Conduct DFM analysis during conceptual design
- Select appropriate material for application environment
- Optimize bend radii and relief dimensions
- Specify proper hole spacing and reinforcement
- Validate prototypes under real-world conditions
Final Inspection Checklist
- ✅ Verify all dimensions against design specifications
- ✅ Confirm material grade and thickness
- ✅ Check bend angles and radii
- ✅ Validate surface finish quality
- ✅ Test assembly fit and function
- ✅ Verify labeling and branding elements
- ✅ Conduct final packaging assessment
Frequently Asked Questions
What is the minimum hole size for sheet metal enclosures?
Minimum hole diameter depends on material thickness and type. For mild steel, minimum circular hole diameter is 1.0 times material thickness, while aluminum allows 0.8 times thickness:cite[1].
How do I prevent corrosion in metal enclosures?
Select appropriate materials for the environment. Stainless steel offers excellent corrosion resistance, while carbon steel requires protective coatings like powder coating or galvanizing.
What factors affect EMI shielding effectiveness?
Material conductivity, enclosure continuity, and aperture size/distribution all impact shielding performance. Proper seam construction and ventilation design are critical:cite[7].
