Sheet Metal Enclosure: 10 Stunning Industrial Applications
Why Sheet Metal Enclosures Rule Industrial Design

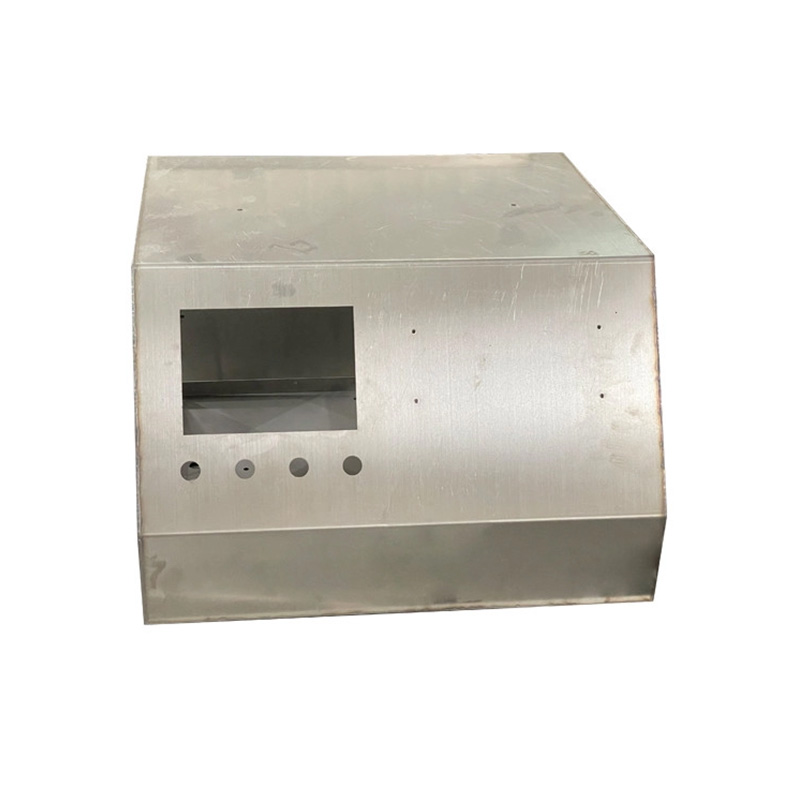

Sheet metal enclosures protect sensitive electronics and machinery across industries. Their magic lies in customizability, durability, and cost-efficiency. Titanium variants, for example, withstand corrosion while staying lightweight—perfect for marine and aerospace applications. Sheet metal enclosures outperform plastic or cast alternatives in thermal management and EMI shielding too. By 2025, the global market is projected to reach $8.2 billion (Global Market Insights, 2024).
10 Game-Changing Applications in Industry
1. Aerospace Avionics Protection
Titanium enclosures shield flight control systems. They handle extreme temperatures at 30,000 feet. Weight reduction is critical here—every ounce saved improves fuel efficiency.
2. Medical Imaging Armor
MRI and CT scan components need EMI shielding. Custom sheet metal enclosures block interference while meeting sterilization requirements. Perforated designs enable ventilation without compromising safety.
3. Renewable Energy Guardians
Solar inverters and wind turbine controllers face harsh weather. Powder-coated steel enclosures resist UV damage and moisture. Sheet metal enclosures here last 20+ years with minimal maintenance.
4. Robotics Integration
Collaborative robots use compact enclosures for control systems. Sheet metal enclosures mount directly onto robotic arms. We used laser-cut aluminum for vibration resistance in 2025 warehouse automation projects.
5. Edge Data Centers
Micro-data centers require thermal management. Perforated aluminum sheet metal enclosures with integrated fans cool servers. Surprisingly, these cut cooling costs by 40% versus plastic alternatives.
Material & Process Showdown
| Method | Pros | Cons | Best For |
|---|---|---|---|
| CNC Punching | Fast setup, high-volume | Limited complexity | Electrical boxes, vents |
| Laser Cutting | ±0.1mm precision | Higher cost | Prototypes, intricate designs |
| Incremental Forming | No custom dies needed | Slower production | Low-volume specialty parts |
5-Step Design Mastery
Step 1: Define Environmental Needs
Assess exposure to moisture, chemicals, or temperature extremes. Coastal applications demand stainless steel or titanium.
Step 2: Select Material Strategically
Choose aluminum for lightweight needs, steel for strength, or titanium for corrosive environments. Don’t forget finishing options!
Step 3: Plan Fabrication Early
Design bends avoiding minimum radii violations. Use professional sheet metal enclosure services for manufacturability analysis. Incorporate tooling access points.
Step 4: Model & Validate
Run FEA simulations for stress points. Check flat pattern accuracy in software like Creo. Remember: ±0.25mm tolerance is achievable with laser cutting.
Step 5: Prototype & Test
Order samples before mass production. Test fit, function, and environmental resistance. Iterate based on real-world data.
⚠️ Critical Warning: Avoid These Mistakes
Ignoring Grain Direction: Bending parallel to grain causes cracking. Rotate designs 90° when possible.
Overlooking Thermal Expansion: Enclosures housing heat sources need expansion gaps. Aluminum expands 2.4x more than steel!
Underestimating EMI Gaps: Seams must overlap correctly for RF shielding. Continuous welds or EMI gaskets fix this.
Pre-Launch Checklist
☐ Confirm material certification (e.g., ASTM B265 for titanium)
☐ Validate IP rating testing results
☐ Check bend relief notches in CAD model
☐ Verify fastener compatibility with base material
☐ Test grounding continuity points
☐ Review flat pattern nesting efficiency
FAQ: Sheet Metal Enclosure Essentials
Can titanium enclosures replace steel in high-temperature applications?
Absolutely! Titanium withstands 600°C vs steel’s 425°C limit while weighing 40% less. Its corrosion resistance reduces maintenance in chemical plants.
How thin can sheet metal enclosure walls be?
For aluminum, 1mm is standard minimum. Stainless steel can go to 0.8mm with laser welding support. Anything thinner risks deformation during fabrication.
What makes CNC punching ideal for enclosure production?
It creates holes, louvers, and cutouts in one operation. Setup takes under 15 minutes. For 10k+ units, per-part costs drop 60% versus laser cutting.
