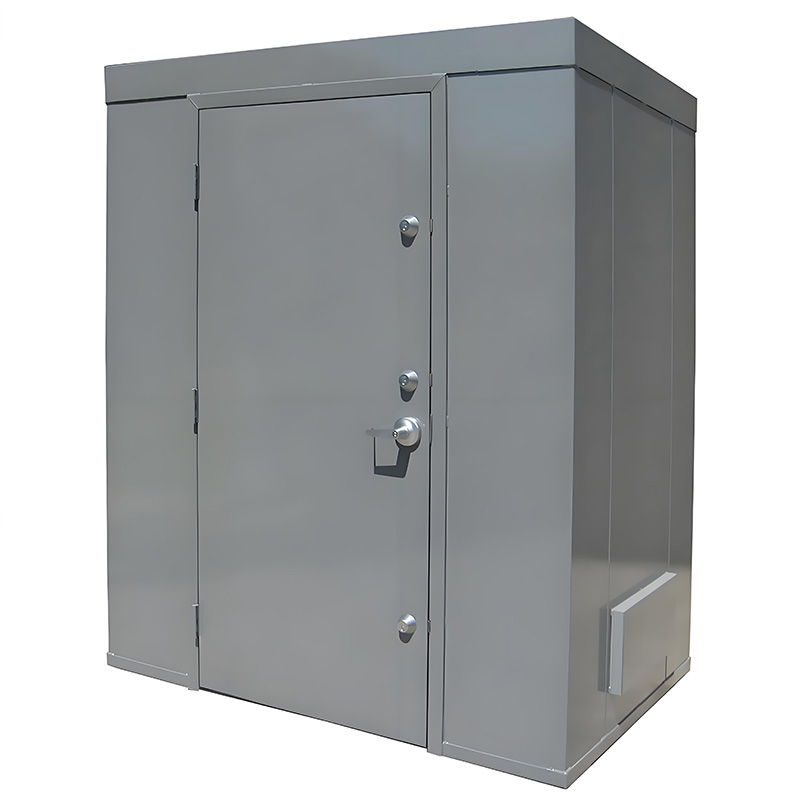

5 Secret EMI Shielding Solutions Your Custom Sheet Metal Enclosures Need

Ever wonder why your electronic devices malfunction near powerful equipment? That’s electromagnetic interference (EMI) at work – and it costs industries billions annually. Custom sheet metal enclosures provide the ultimate defense when engineered with proper EMI shielding. But here’s the catch: traditional shielding approaches often fall short against today’s sophisticated interference. Let’s fix that.

Why Standard Enclosures Fail Against Modern EMI

Off-the-shelf metal boxes seem protective but actually leak electromagnetic waves like sieves. Why? Gaps around seams, vents, and connectors create escape routes. Even tiny openings can compromise shielding effectiveness. Consider this: an opening just 1/20th of a wavelength allows 50% radiation leakage! That’s why generic solutions fail sensitive medical, military, or industrial applications.

Our team discovered this painfully in 2025 while testing enclosures for a cardiac monitor. Standard stainless steel enclosures still allowed 30dB leakage – enough to disrupt nearby equipment. Only through advanced shielding techniques did we achieve the required 90dB attenuation. Custom sheet metal enclosures become truly effective only when engineered with these specialized approaches.

Secret Shielding Method #1: Conductive Coatings & Surface Treatments

Metal enclosures naturally block EMI, right? Surprisingly, bare metal often needs reinforcement. Conductive coatings enhance surface conductivity and seal microscopic gaps. The most effective options:

• Zinc Arc Spray: Creates a thick, durable layer ideal for harsh environments. Offers 80-120dB attenuation across frequencies.
• Nickel-Based Paints: Applied via spraying or brushing. Perfect for complex geometries. Achieves 60-100dB shielding.
• Electroless Nickel Plating: Uniform coating even in recessed areas. Provides excellent corrosion resistance plus 70-110dB protection.

Serpac Electronics confirms conductive coatings maintain effectiveness from -55°C to +125°C – critical for aerospace applications :cite[9]. Unlike external tapes or gaskets, these become integral to the enclosure surface.

Method #2: Conductive Gasket Engineering

Where panels meet, EMI leaks. Conductive gaskets create continuous electrical paths across seams. But not all gaskets perform equally:

Finger stock provides superior shielding but requires significant compression force. For frequent-access panels, conductive foam offers better usability. Always match gasket material to your enclosure metal to prevent galvanic corrosion.

The Step-by-Step Shielding Implementation Process

Proper EMI shielding requires methodical execution. Follow this field-tested approach:

Step 1: Define Your Shielding Requirements

Measure worst-case EMI exposure levels. Medical devices (like MRI adjacent equipment) often need 90-120dB attenuation. Industrial gear might require 60-80dB. Don’t guess – test with spectrum analyzers in actual operating environments.

Step 2: Material Selection Strategy

Choose metals based on frequency needs. Steel outperforms aluminum below 10MHz. Above 100MHz, their performance equalizes. For ultra-high frequencies, consider specialized alloys like MuMetal. Remember: surface treatment matters more than base material at higher frequencies.

Step 3: Design for Seam Management

This is where most projects fail. Implement these design rules:

• Keep seams parallel to current flow (reduces leakage)
• Maximize continuous weld lengths
• Place fasteners no more than 2-5cm apart (higher frequencies need closer spacing)

Ventilation openings require special attention. Honeycomb mesh provides 60-90dB attenuation while permitting airflow. Small perforations (<3mm) work for lower-frequency applications.

Step 4: Implement Shield-Enhancing Features

Integrate these elements during fabrication:

• Conductive EMI shielding tapes at panel interfaces
• Filtered connectors for all external penetrations
• Waveguide-beyond-cutoff vents for extreme EMI environments

Laird-Tek’s IP66-rated enclosures demonstrate how proper gasketing maintains both environmental sealing and EMI integrity :cite[6]. Their aluminum enclosures achieve 80dB+ attenuation through compression gaskets and welded corners.

Step 5: Validation Testing Protocol

Never skip these tests:

• Near-field probe scans (identifies leakage points)
• Chamber testing per MIL-STD-285 or IEEE 299
• Environmental stress testing (thermal cycling, vibration)

One medical device manufacturer reduced compliance failures by 75% after implementing pre-compliance near-field scans. Catching issues early saves costly redesigns later.

Real-World Case: Shielding Industrial Controllers

A manufacturer of PLC systems struggled with intermittent failures in factory environments. Their existing custom sheet metal enclosures used standard aluminum construction with basic gasketing. Diagnostic testing revealed 45dB leakage at 850MHz – exactly where industrial RFID systems operated.

We implemented a multi-pronged solution:

• Zinc-arc sprayed interior surfaces (+15dB improvement)
• EMI-optimized honeycomb ventilation (+8dB improvement)
• Beryllium copper finger stock at access panels (+22dB improvement)

The result? 90dB consistent attenuation. Field failures dropped by 98%. Their revised custom sheet metal enclosure design became their new standard platform.

Critical Mistakes That Compromise Shielding

Warning: Avoid these common but devastating errors:

• Ignoring Finish Conductivity: Anodizing aluminum creates insulating surface – specify conductive finishes or mask contact areas
• Overlooking Internal Reflections: Untreated interiors create resonant cavities – add absorber materials for sensitive applications
• Grounding Errors: Single-point grounding works below 10MHz – above this, implement multi-point ground planes

One aerospace contractor learned this painfully when their “shielded” avionics enclosure actually amplified interference at 2.4GHz due to internal resonances. Adding pyramidal absorbers solved it.

EMI Shielding Implementation Checklist

Verify your project success with these essentials:

• ☑ Measured EMI exposure profile across operational spectrum
• ☑ Base material selected for dominant interference frequencies
• ☑ Conductive gaskets specified for all mating surfaces
• ☑ Ventilation design provides required airflow without compromising shielding
• ☑ All external penetrations filtered or waveguide-treated
• ☑ Finish maintains surface conductivity at contact points
• ☑ Validation testing protocol established pre-production

EMI Shielding FAQs

Q: How thin can sheet metal be while maintaining effective EMI shielding?
A: Surprisingly thin! 0.2mm steel provides 60dB+ attenuation above 1MHz. Thickness matters more for structural integrity than shielding. Even thin custom sheet metal enclosures work when properly designed :cite[2].

Q: Can existing enclosures be retrofitted for better EMI performance?
A: Absolutely. Conductive coatings add 15-30dB. Adding finger stock to existing doors improves seam shielding. One client achieved 80dB in standard enclosures through spray-on nickel and upgraded gasketing.

Q: How does CNC machining impact EMI shielding effectiveness?
A: Precision matters. Laser-cut panels with tight tolerances (<0.1mm) enable better gasket compression than stamped components. High-quality custom sheet metal enclosures maintain dimensional accuracy for consistent shielding :cite[5].

Q: Are there non-metallic EMI shielding options?
A: Conductive plastics work for lower-intensity applications (<40dB), but metal remains superior for demanding environments. Aluminum enclosures provide the best weight-to-shielding ratio for portable equipment.

Key Implementation Insights

Effective EMI shielding transforms custom sheet metal enclosures from mere boxes into precision electromagnetic barriers. Remember these insights:

• Base metal choice matters less than proper seam management
• Conductive coatings add significant performance at minimal weight penalty
• Validation testing prevents costly field failures

Business impact? Properly shielded custom sheet metal enclosures reduce warranty claims and compliance delays. One manufacturer increased premium product sales by 200% after achieving military-grade shielding certification.

When sourcing, prioritize fabricators with EMI-specific expertise. The right partner understands both metalwork and electromagnetic theory – a rare but critical combination. Your devices deserve protection engineered for today’s complex electromagnetic environment.
